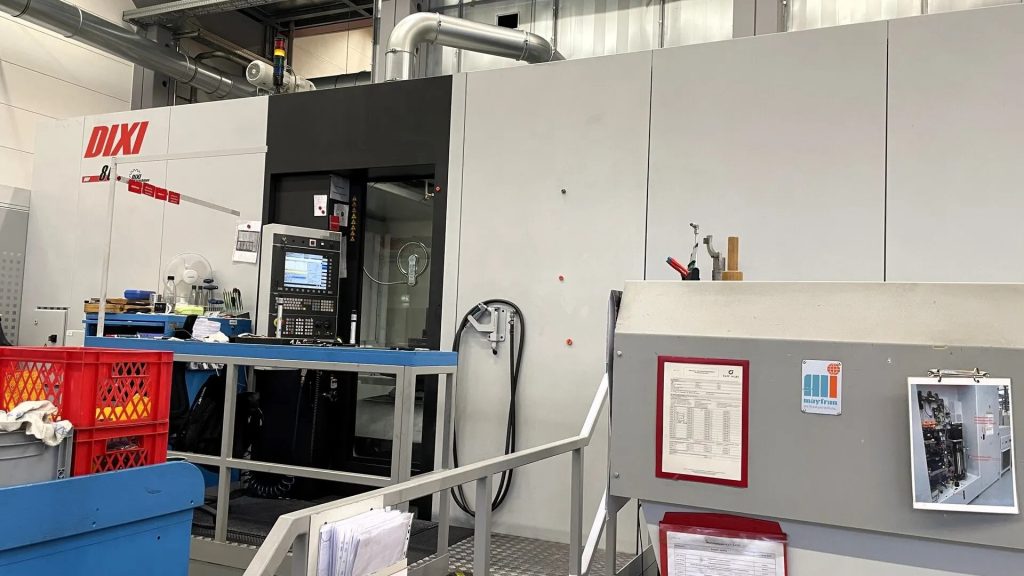

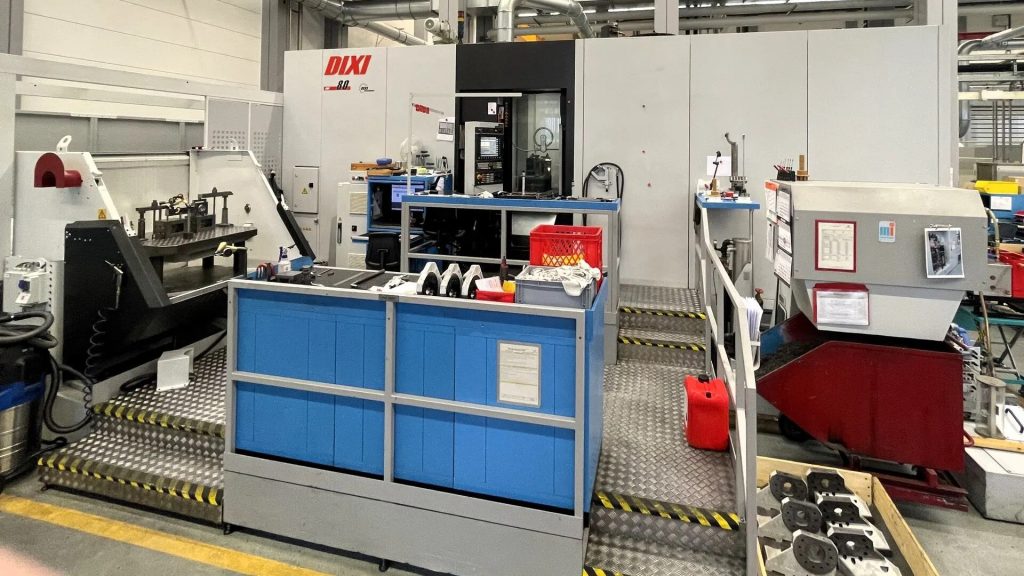

品牌：DIXI ? 型號：DHP 80? 類型：Horizontal Machining Centre
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |
 |
技術(shù)參數(shù)
| z-motion | 1,100 mm |
| max. workpiece weight between centers | 1,500 kg |
| x-motion | 1,200 mm |
| y-motion | 1,100 mm |
| control | SIEMENS Sinumerik 840 D |
| taper | HSK A-100 |
| toolchanger positions | 200 |
| turning speed range | 12,000 rpm |
| feed range | 0-10000 mm/min |
| rapid motion | 40 m/min |
| weight approx | 27,000 kg |
| Approx. Onsite Dimension. (l x w x h) | 9,300 x 7,100 x 4,100 mm |
| table surface area l x w | 1000×800 mm |
| Linear axes | |
| Traverse path X/Y/Z axis | 1,200/1,100/1,100 mm |
| Y distance pallet to spindle (min. – max.) | 40 – 1,140 mm |
| Z distance from pallet centre to spindle (min. – max.) | 230 – 1,320 mm |
| Work feed | 0 – 10,000 mm/min |
| Rapid traverse | 40,000 mm/min |
| B-axis | |
| Table indexing angle min. | 0.0001° |
| Feed rate | 0-10 rpm |
| Max. torque (continuous, nominal torque) | 1,040 – 1,828 Nm |

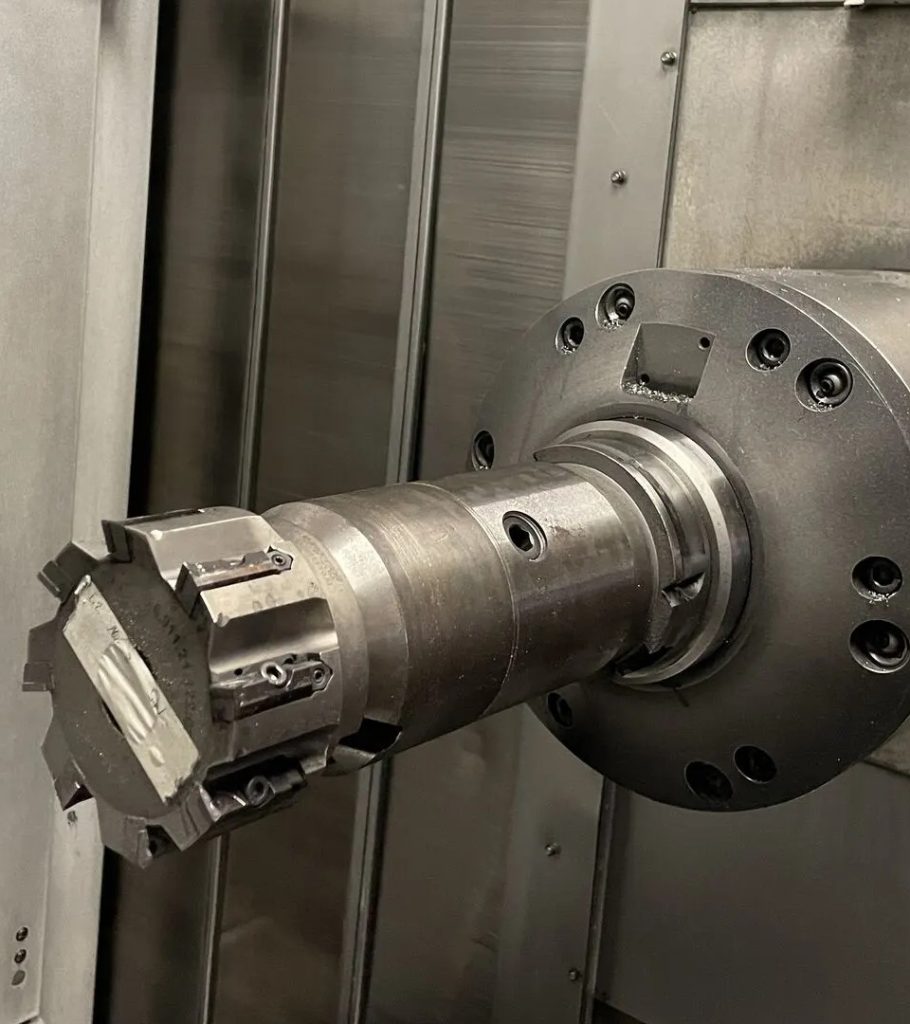

| Spindle with internal coolant supply | |
| Nominal spindle motor power | 39 kW |
| Spindle speed max. | 12,000 rpm |

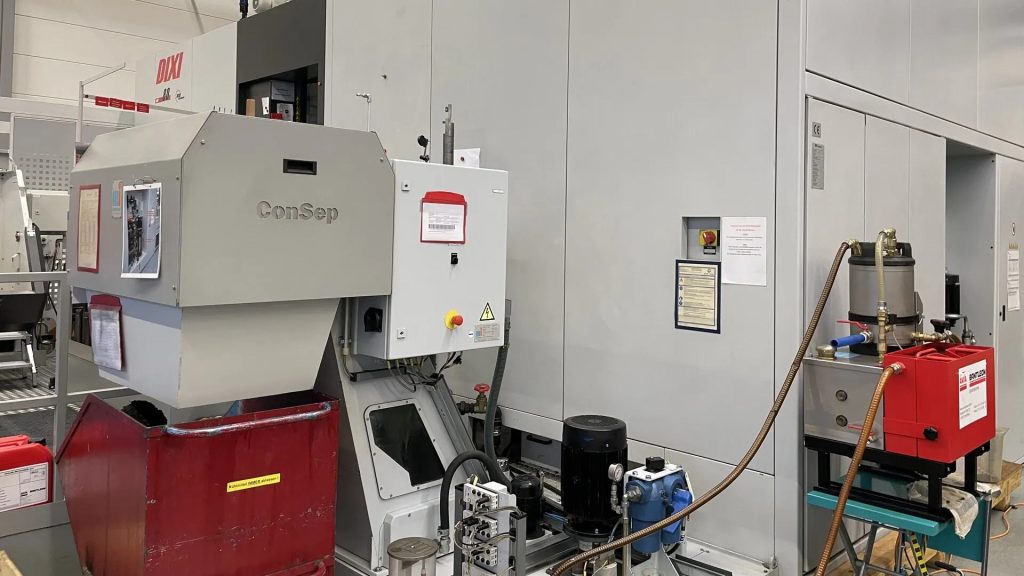

| Coolant supply with 70 bar and 20 l/min | |

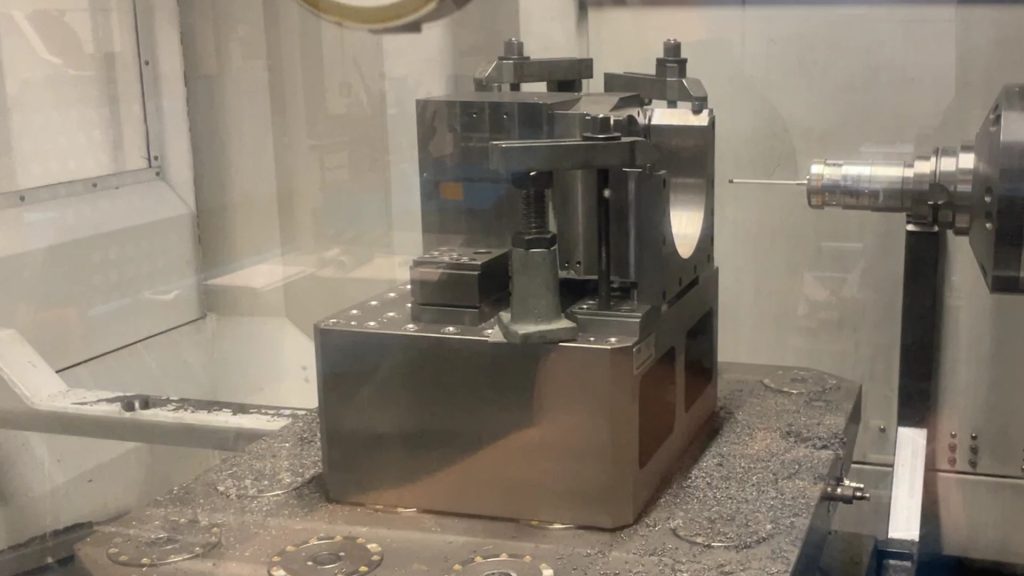

| Automatic FASTEMS pallet changer | |
| Pallet storage locations | 4 |
| Pallet dimensions | 800 x 1,000 mm |
| Workpiece dimensions max. | ? 1,200 mm x 1,200 mm height |
| Workpiece weight max. | 1,500 kg |

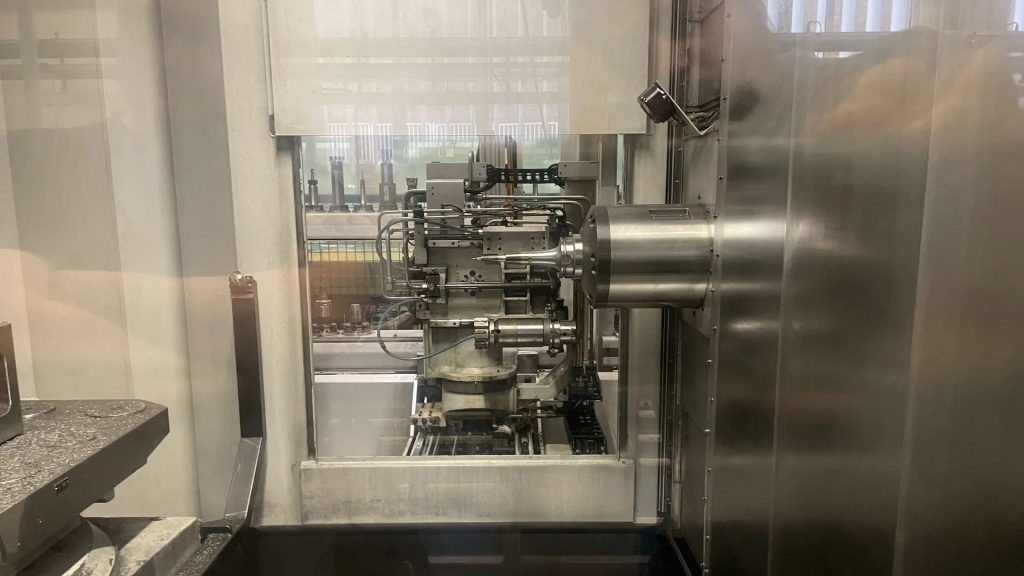

| Tool changer with 200 tool stations | |
| Loading station with tool recognition system | |
| Cone cleaning station | |
| BLUM tool laser measurement | |

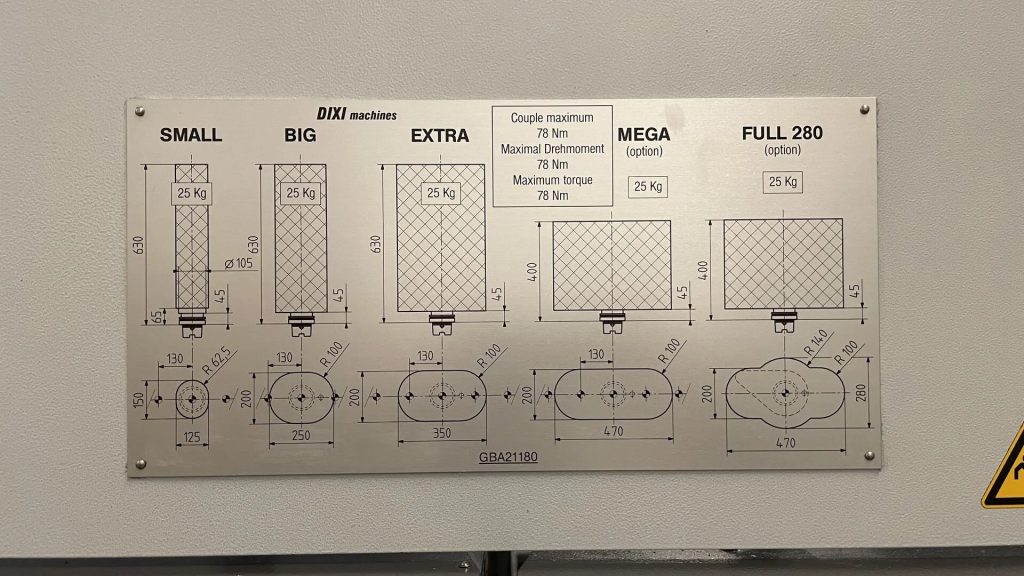

| Max. Tool dimensions | |
| Tool length | 630 mm |
| Tool diameter | 125 mm |
| Tool diameter | 350 mm (with free side positions) |
| Tool weight | 25 kg |
