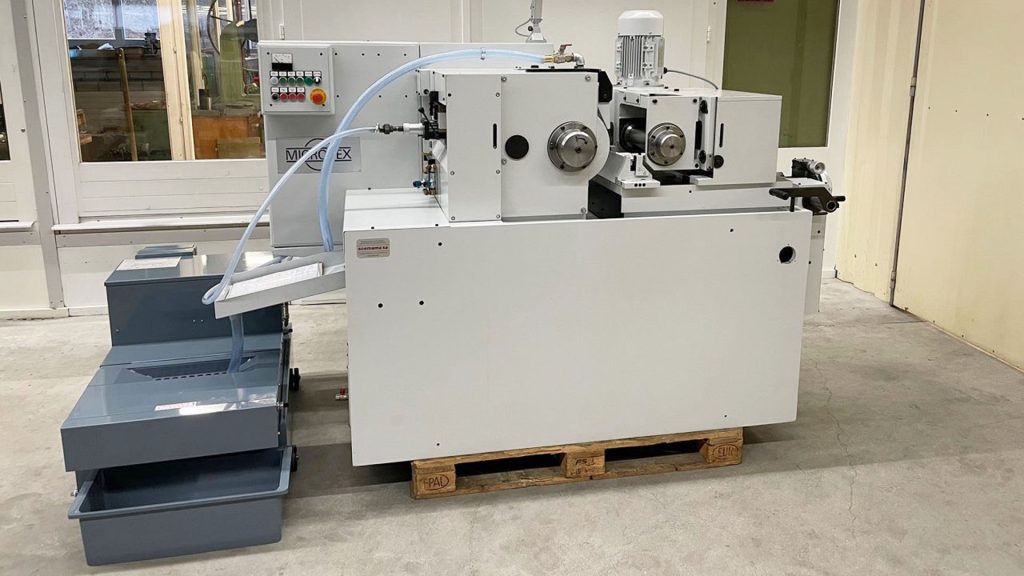

Brand：MICROREX? ? Type：2H? ? Category：CENTERLESS GRINDING MACHINE
 |
|
 |
 |
 |
 |
 |
|
 |
|
 |
|
Technical Parameter
| Manufacturing origin | France |
| Voltage | 380/50/3 |
| Netweight | 3000 kg |
| Custom position | 8460.29 20 |
| Dimensions | 2400×1550 mm |
| Diameter capacity | 80 mm |
| Type 2HA | 120 mm |
| Maximum infeed grinding length | 200 mm |
| Maximum throughfeed grinding length | |
| (with normaltype guides) | 300 mm |
| Grinding wheel | |
| diameter | 400 mm |
| maximum width | 200 mm |
| bore | 203.2 mm |
| Driving wheel | |
| diameter | 254 mm |
| width | 200 mm |
| bore | 127 mm |
| Main drive motor | 1122 kW |
| Driving wheel motor | 1,1 kW |
| Driving wheel speed | 10 – 200 U/Min |
| Standard accessories | |

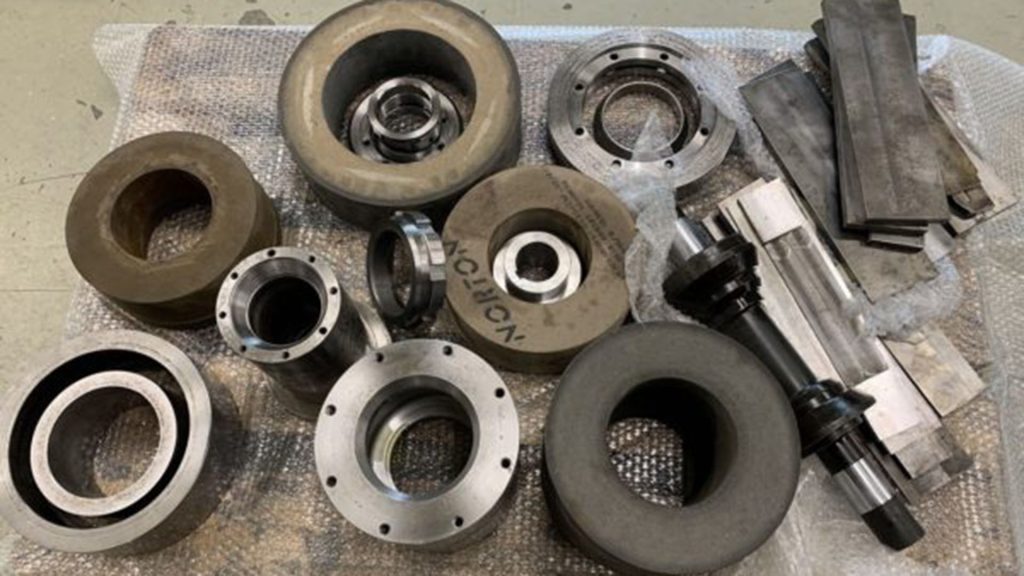

| 1 flange with grinding wheel | |
| 1 flange with driving wheel | |

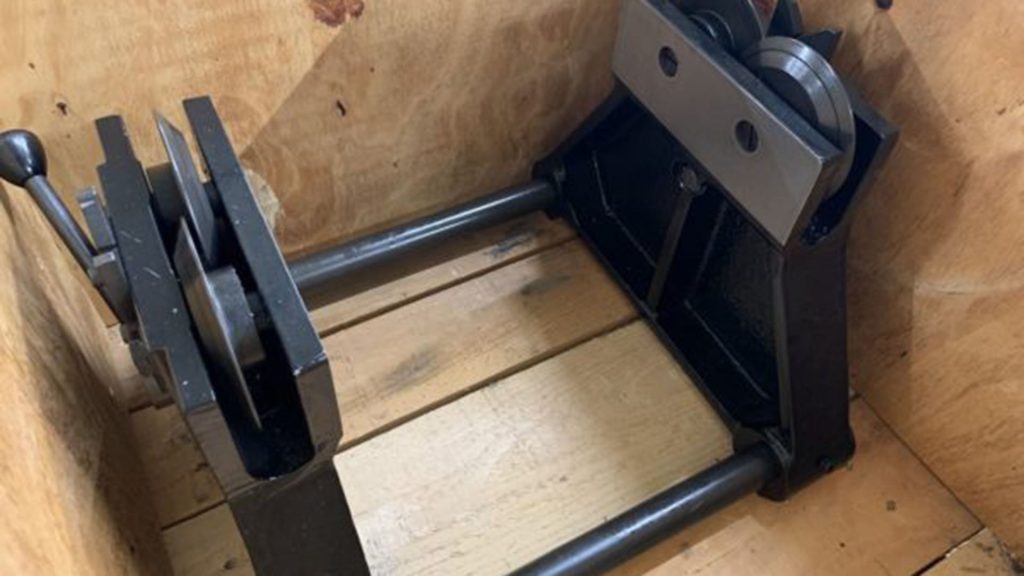

| 1 workpiece support bridge | |
| 1 set of shims for workpiece support | |
| Hydraulic dressing and trueing device for grinding and driving wheels | |
| Variable speed drive of driving wheel | |

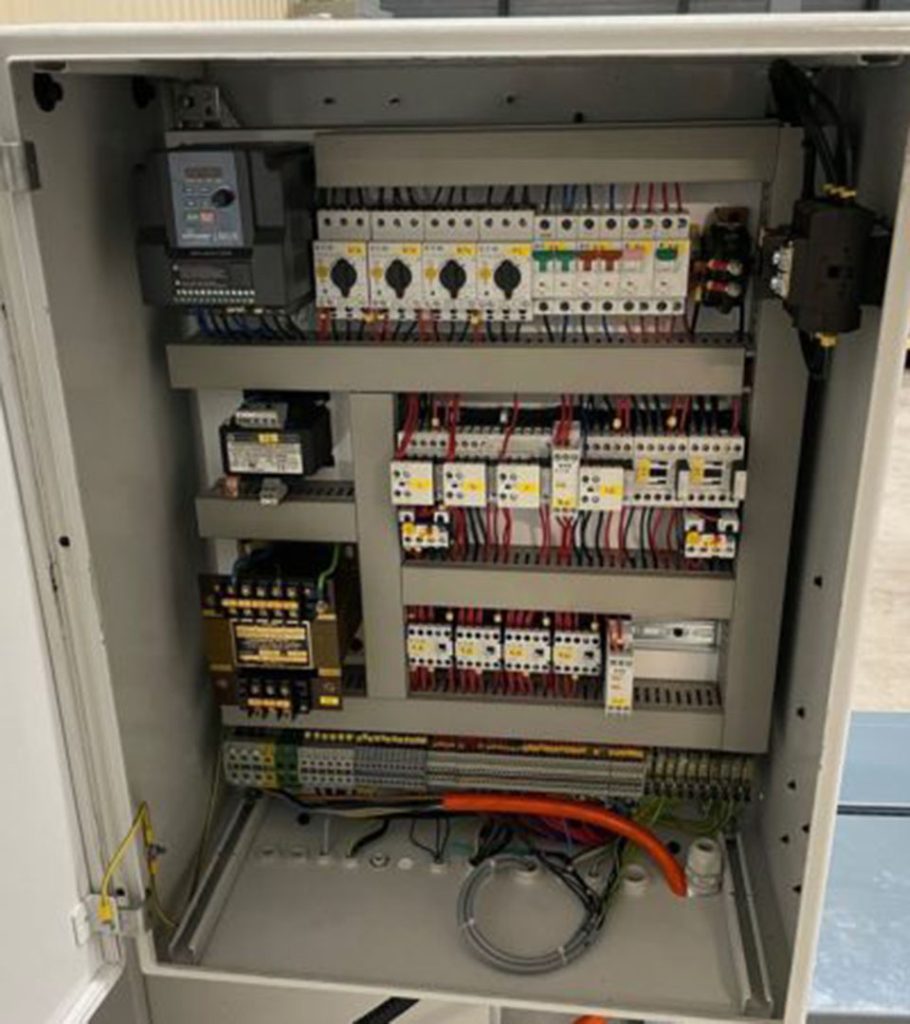

| Electrical equipment for 3×380 v, 50 Hz | |
| Main drive motor, 11 kW | |

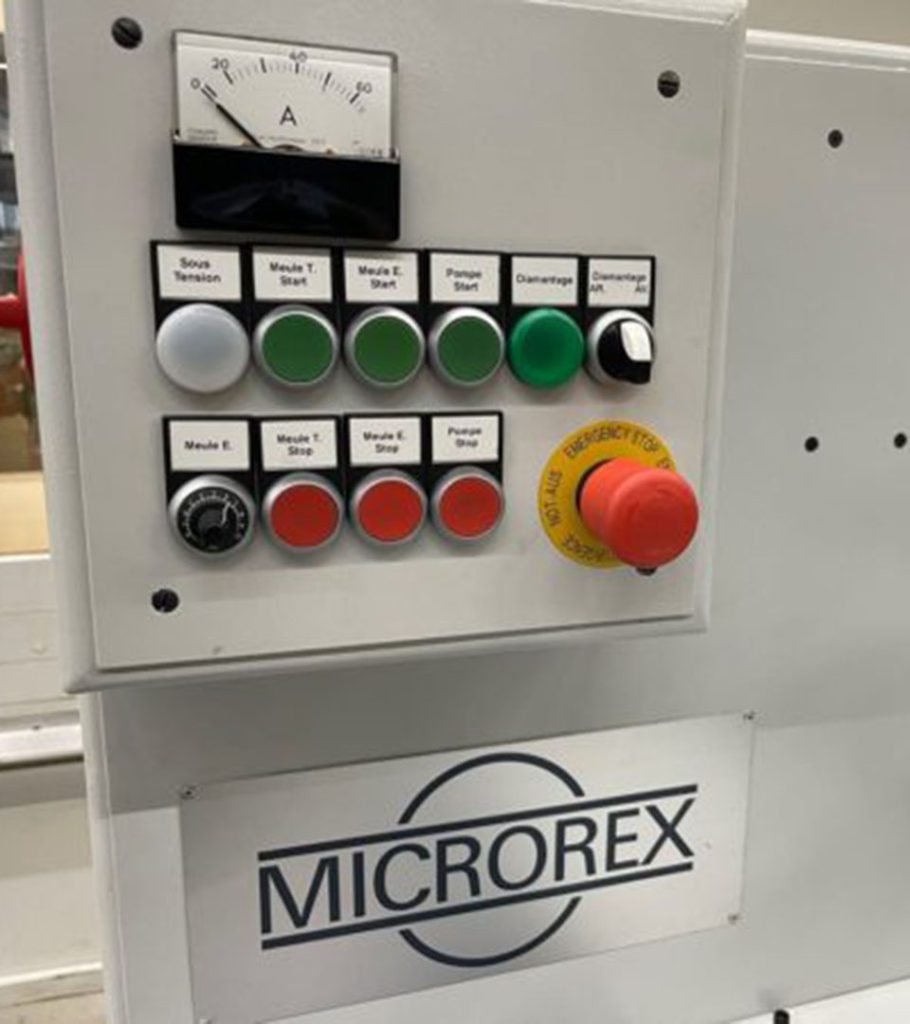

| Ammeter for main drive motor | |
| Starter keys and operating manual | |
| Weight | 3200 kg |
