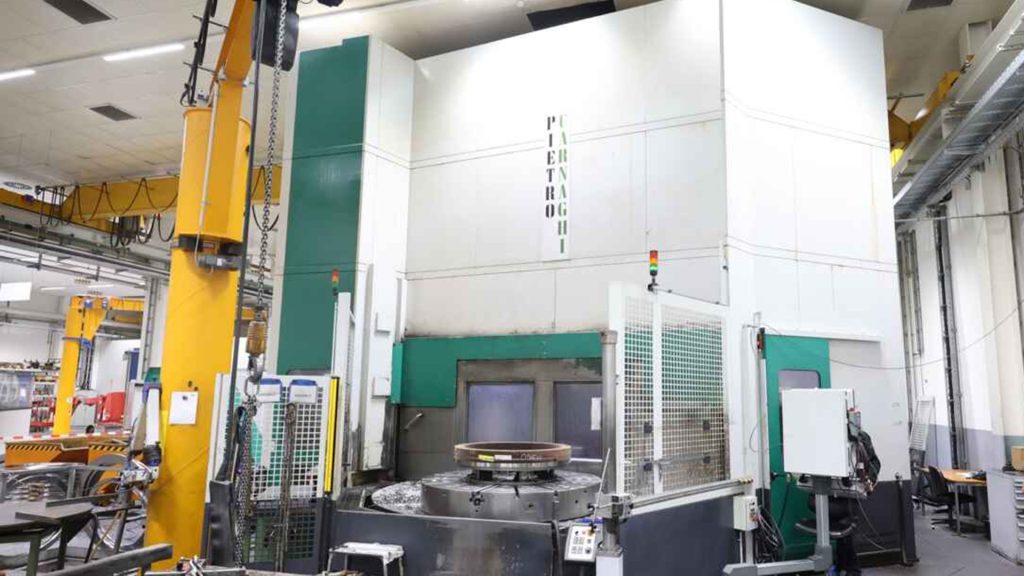

Brand：PIETRO CARNAGHI? Type：AC 20 TM 1800? ? Category：CNC Lathe
 |
 |
 |
 |
 |
 |
 |
 |
 |
Technical Parameter

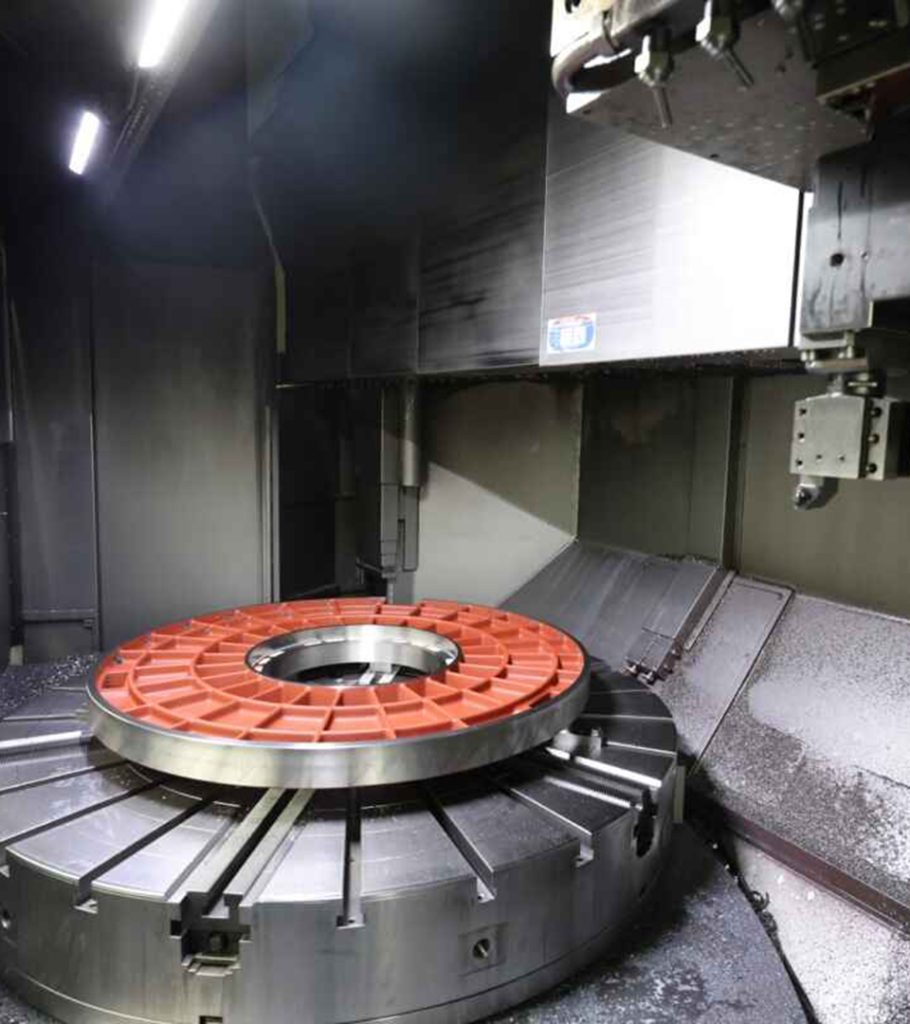

| faceplate diameter | 1800 mm |
| swing diameter | 2000 mm |
| turning height | 1270 / 1120 mm |

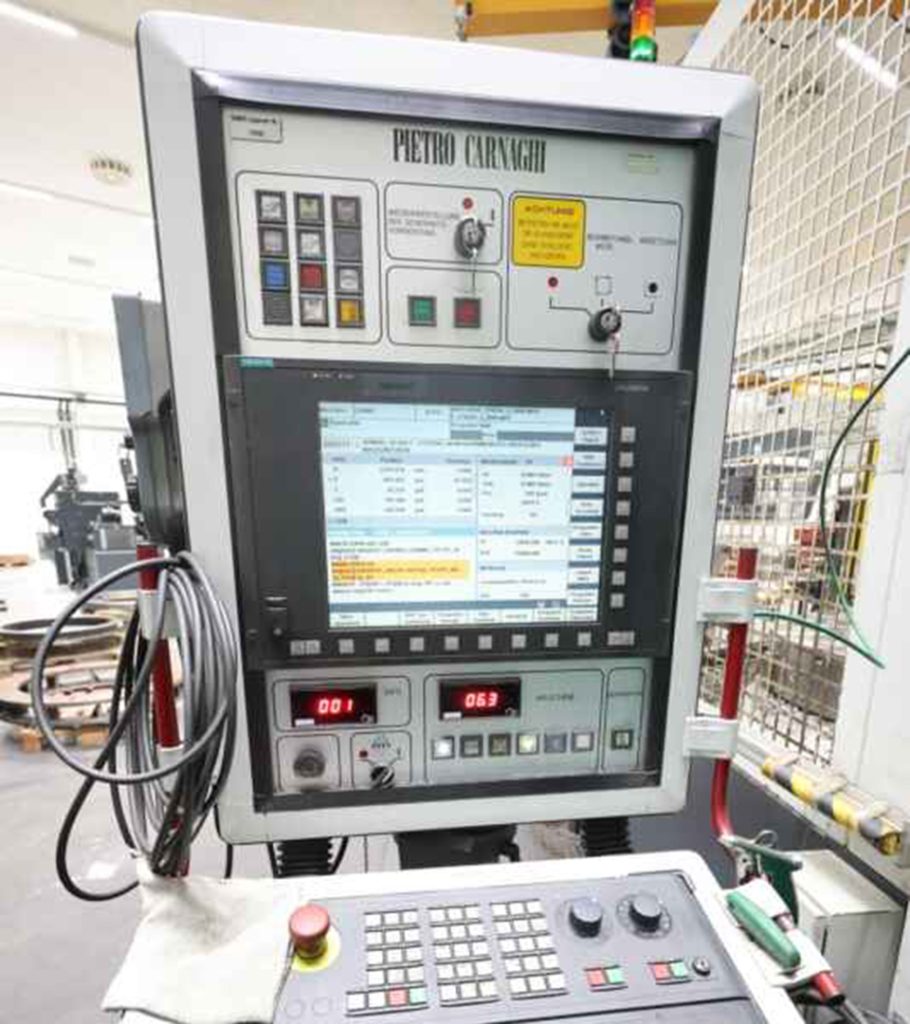

| Control | SIEMENS 840 D |
| workpiece weight max. | 5000 kg |
| ram head dimension | 250 x 250 mm |
| table turning speeds | 1 – 320 U/min |
| cross rail – adjustment | 400 mm |
| ram head – cross travel(X) | -2770 / +2275 mm |
| ram head – vertical travel(Z) | 1250 mm |
| c-axis | 360° (0,001°) deg |
| milling drive | 37 kW |
| turning speed range – milling | 10 – 3000 U/min |
| power capacity – table | 100 kW |
| Torque | 31784 Nm |
| feed range(X/Z) | 0,1 – 15000 mm/min |
| total power requirement | kW |
| weight of the machine ca. | 55 t |
| dimensions of the machine ca. | m |
| Max. workpiece diameter | 2040 mm |
| Max. workpiece height | 1270 mm |
| Table speed range | 1.0 – 320 rpm |
| Table drive motor | 100 kW |
| Drilling and milling spindle | 37 kW |
| Crossbar travel | 2 steps of 200 mm each |
| Total electrical connection value | 218 kVA |
| Number of NC axes | 4 (X, Z, C, crossbar adjustment) |
| X-axis Travel | -1650 to + 2165 mm |
| Rapid traverse X- Z-axis | 15 m/min |
| Number of tool magazine spaces in chain magazine | 80 spaces, of which 60 x HSK 100 and 20 x Capto C6 |

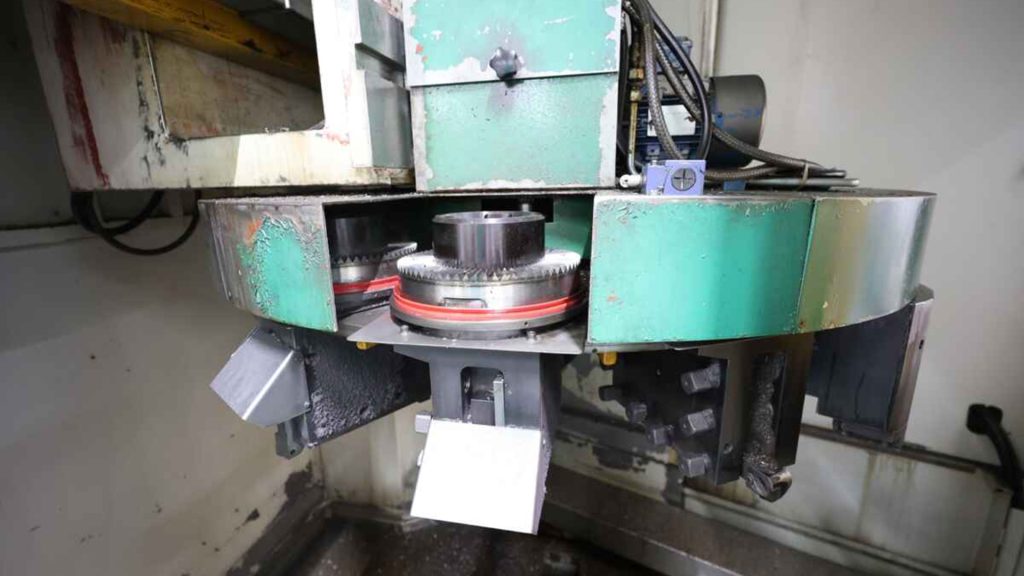

| Number of tool magazine spaces in disc magazine | 12-pos. for rotary holders and attachment heads |
| Condition of cross roller bearing on the Carnaghi | Replaced about half a year ago |
| Replacement of Siemens components in control cabinet | Completely replaced at the end of 2023 |
| Type of measuring probe for tool measurement | Measuring probe for tool measurement exists |
| Type of measuring probe for workpiece measurement | External Renishaw measuring probe for workpiece measurement |
| Position of special measuring probe | Installed on the Z-axis (Z1-axis) (currently shut down and needs overhaul) |
| Overhaul time of Rotomors six-jaw lever compensating chuck with centrifugal force compensation | 2020/21 |
