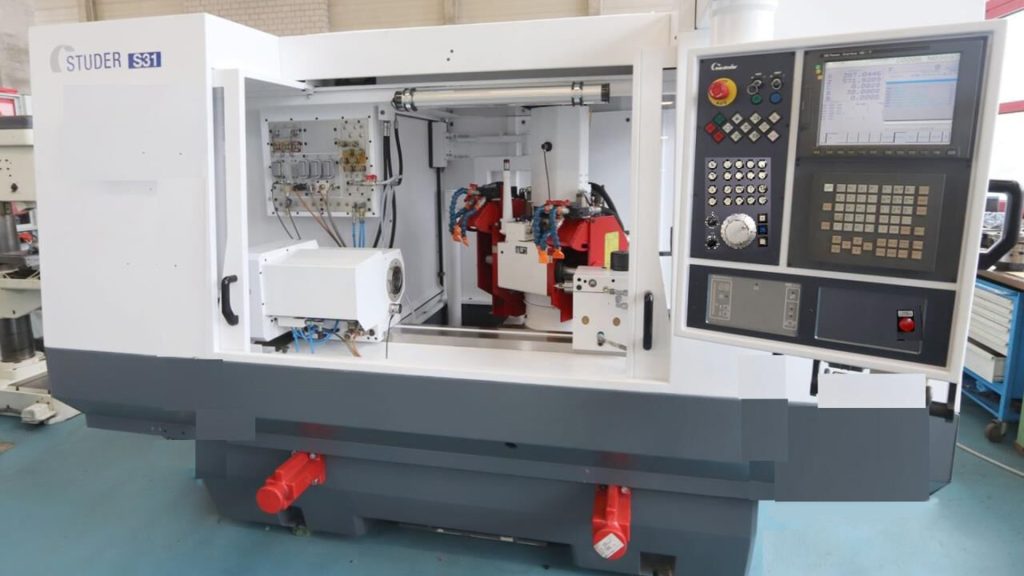

Refurbished Studer S 31 CNC cylindrical grinder
Posted by：EurasiacomDate Posted：2025-4

Brand：Studer? ? Type：S 31? ? Category：cylindrical grinder

Technical Parameter



Centre height 175 mm
Distance between centres 650 mm
Workpiece weight on centres max. 80 kg
Grinding wheel right and left hand
Grinding wheel Diameter 500 mm
Grinding wheel Width 63 mm
Grinding wheel Bore 203 mm
Turret grinding tool holder for ext. and int. 2+1
Grinding wheel speeds from 1400 rpm
Grinding wheel speeds up to 3200 rpm
Rotatable grinding spindle head (b-axis) 1 °
Peripheral speed 50 m/s
Longitudinal slide Max. travel 800 mm
Transversal slide Max. travel 254 mm
Work piece spindle head speeds from 1 rpm
Work piece spindle head speeds up to 1000 rpm
Typing speed 30 rpm
rotatable -15 / + 195 °
taper in spindle MT 4
Required power 2.8 kW
Tailstock con regolazione micrometrica
Taper in tailstock 3 MT
Spindle stroke 35 mm
Spindle diameter 50 mm
Air connect 5 – 7 bar
Voltage 50 Hz 3x 380 Volt
Grinding spindle motor 7.5 kW
Total power required 32 kVA
Machine’s weight about 5200 kg
Overall dimensions machine Length 3000 mm
Overall dimensions machine Width 2200 mm
Overall dimensions machine Height 2100 mm
Pneumatic lifting
Preparation for coolant device
Touch probe MARPOSS
Internal grinding attachment Number of spindles 1
Internal grinding attachment Grinding wheel speeds up to 30000 rpm
Lamp
RS-232 Interface
  •
