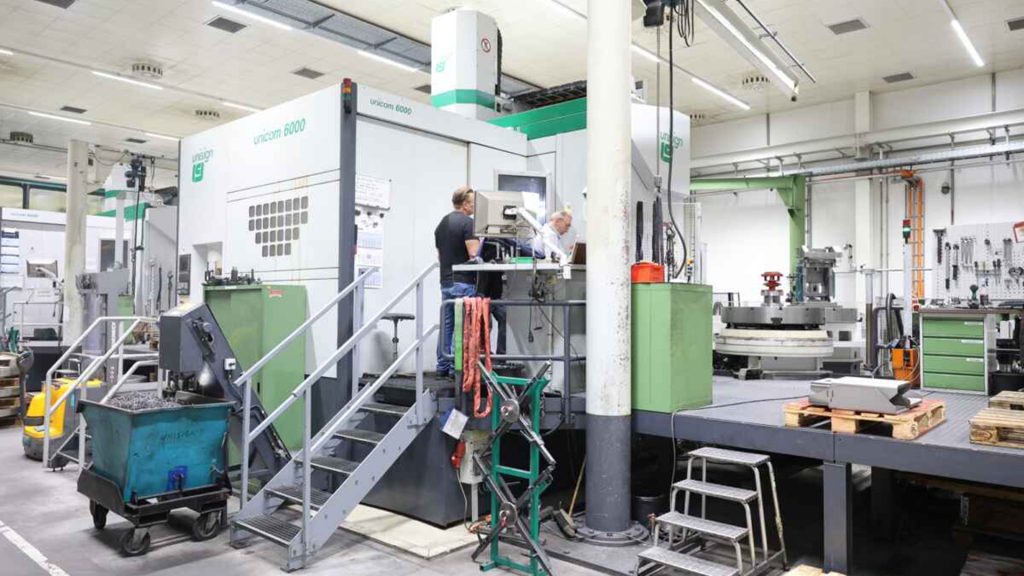

Brand：UNISIGN? ? Type：UNICOM 6000? ? Category：Machine Center
 |
 |
 |
 |
 |
 |
 |
 |
Technical Parameter
| Year of construction | 2005 |
| Control | CNC |
| Location | Germany |
| Country of origin | Netherlands |
| turning diameter | 2000 mm |
| control | Siemens 840 D |
| x-travel | 2000 mm |
| y-travel | 2300 mm |
| z-travel | 1000 mm |
| total power requirement | 153 kW |
| weight of the machine ca. | 67,0 t |
| dimensions of the machine ca. | 9,0 x 7,5 x 5,1 m |
| Max. workpiece diameter | 2000 mm |
| Distance spindle nose to pallet surface min. | 150 |
| Distance spindle nose to pallet surface max. | 1120 mm |
| Pallet size | Diameter 1250 x 200 mm |
| Pallet size | Diameter 1600 x 230 mm |
| Pallet clamping surface designed with | 12 star-shaped T-slots 22H9 |
| Pallet center hole diameter | 100 mm H6 |
| Maximum permissible pallet load | 3000 kg |
| Rotating spindle speed range | 1 – 400 rpm |
| Rotating spindle drive power | 70 kW |
| Speed range of drilling and milling spindle | 1- 12000 rpm |
| Drive power of drilling and milling spindle | 40 kW (S1-100%) |
| Maximum spindle torque | 137 Nm |
| Main spindle bearing diameter | 70 mm |
| Solid drilling diameter | 50 mm in C45 |
| Tapping | M 42 in C45 |
| Milling | 400 cm3/min. in C45 |
| Milling | 3000 cm3/min. in aluminum |
| Maximum torque | 25000 Nm |
| Main bearing designed with | 845 mm diameter axial bearing |
| Main bearing designed with | 200 mm diameter radial bearing (2-way) |
| Number of positions | 360,000 |
| Positioning accuracy | +/- 0.001° |
| Repeatability accuracy | +/- 0.0005° |
| Maximum speed | 15 rpm |
| Feed pressure in X and Y axes | 30000 N |
| Drilling pressure of Z axis | 20000 N |
| Feed | 5-30000 mm/min. |
| Rapid traverse X- Y- Z axis | 30 m/min. |
| Maximum permissible tool diameter | 125 mm |
| Maximum permissible tool diameter with free adjacent spaces | 180 mm |
| Maximum tool length | 450 mm (with max.diameter 90 mm) |
| Maximum permissible tool weight | 15 kg |
| Tool change time | 10 seconds |
| Total electrical connection value | 153 kVA |
| Display area Length | 9000 mm |
| Display area Width | 7500 mm |
| Total height | 5100 mm |
| Max. power | 15 kW (S6-25%) |
