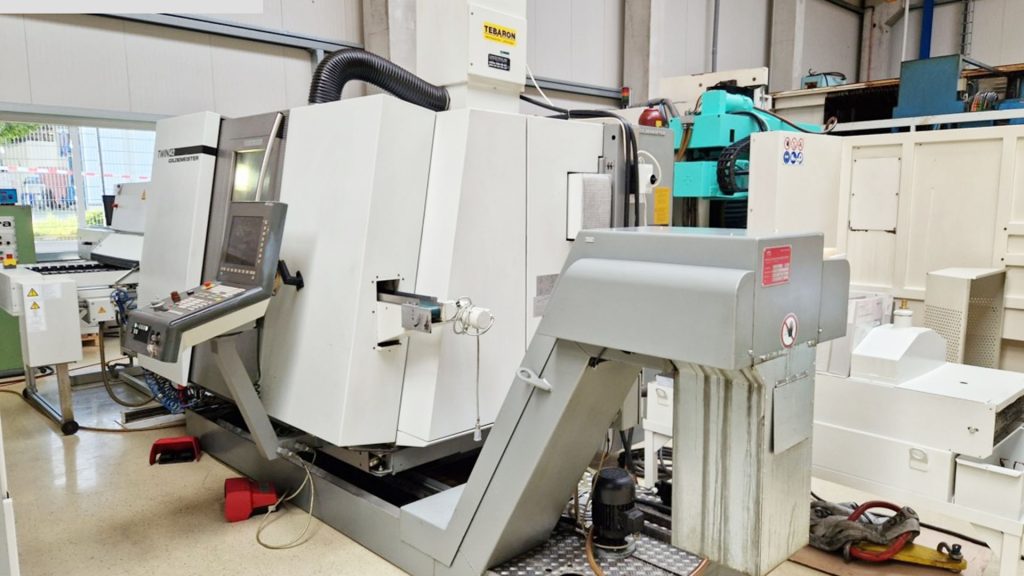

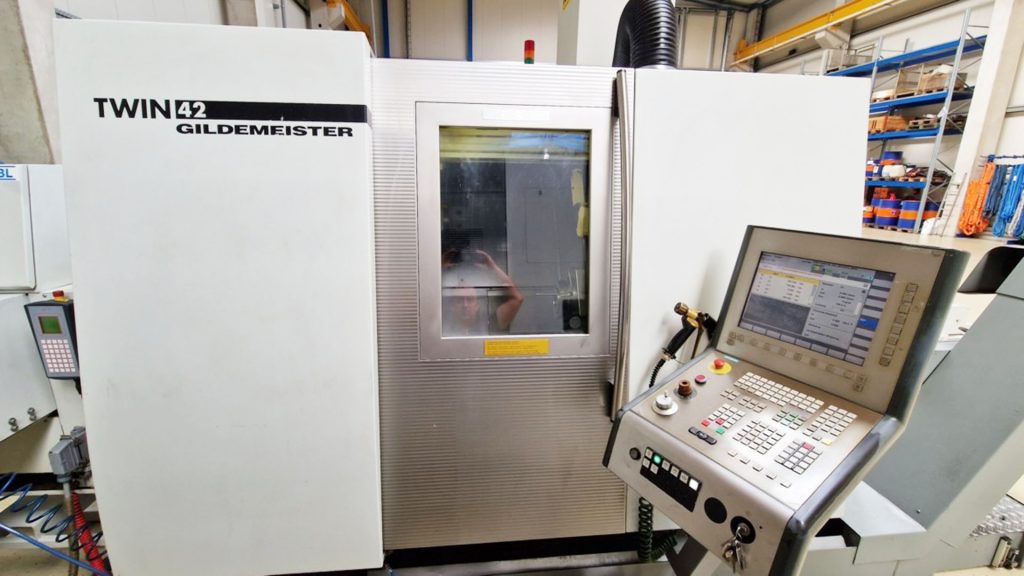

GILDEMEISTER CNC Turning- and Milling Center
Posted by：EurasiacomDate Posted：2024-1

Brand：GILDEMEISTER? ? Type：TWIN 42? ? Category：Turning- and Milling Center

Technical Parameter



Year of construction 2002
Control CNC
Location Monheim (Germany)
Country of origin Germany
turning diameter 100 mm
turning length 210 mm
contro Siemens 840 D Powerline
tool taper VDI 25
swing diameter 145 mm
bar material dia. 42 mm
centre distance 580 mm
longitudinal travel (Z3) 380 mm
vertical stroke (X3) 145 mm
rapid traverse x + z axis 20/30 m/min
main spindle speeds 35 – 7000 U/min.
tailstock quill stroke 230 mm
tailstock quill taper MT 3
main drive motor 35 kW
Subspindle motor 35 kW
Dimensions (LxWxH) 4200 x 2585 x 2041 mm
weight of the machine ca. 5,3 t

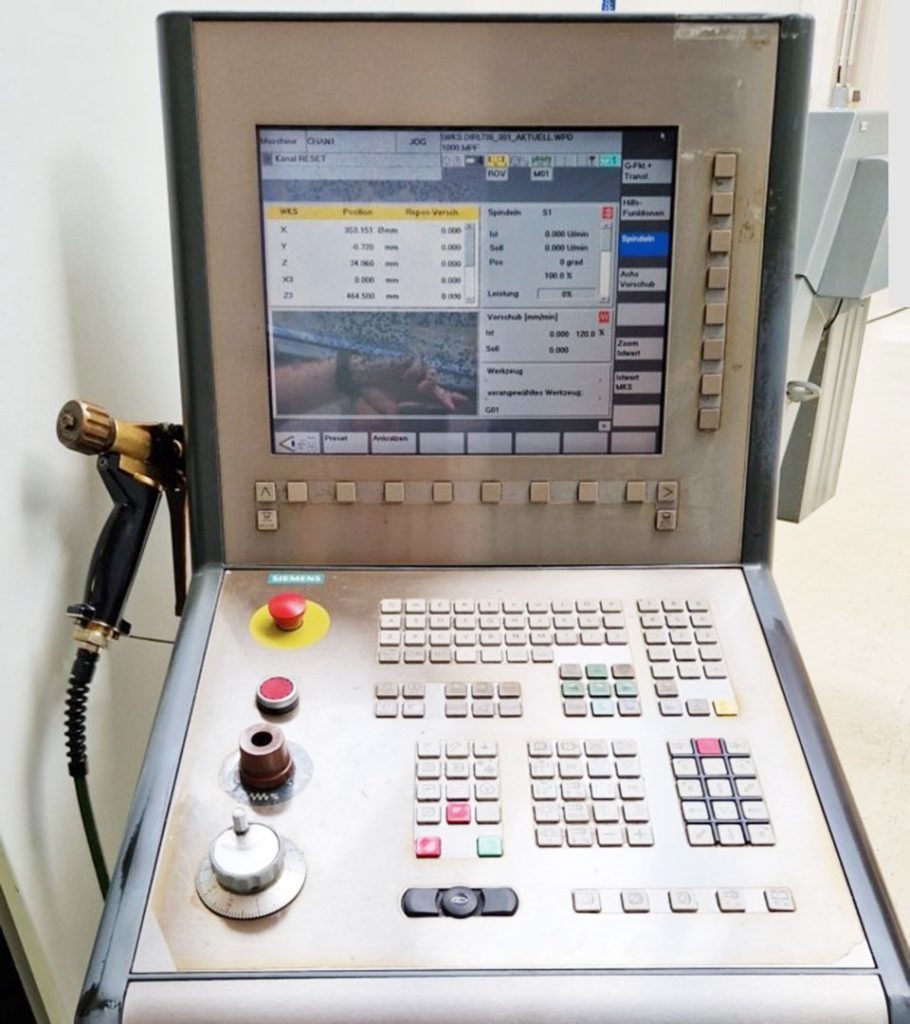

CNC control Siemens 840 D Powerline.

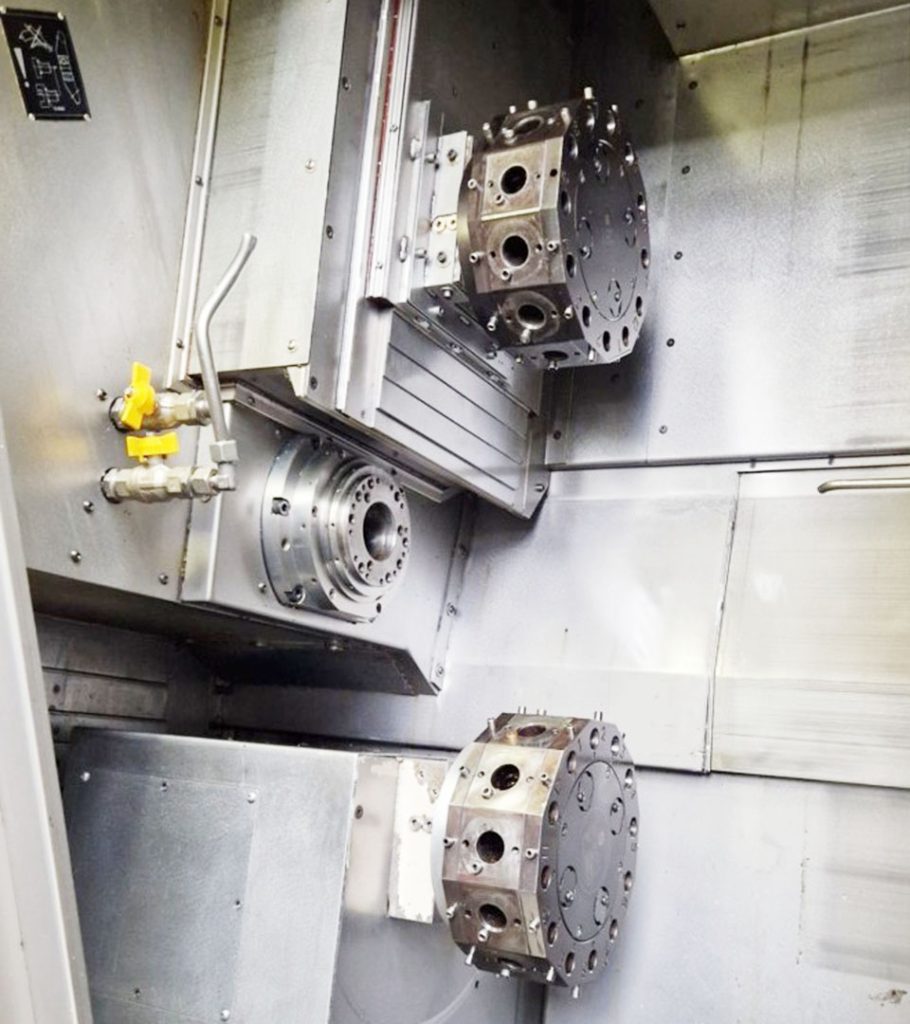

2 x 12-station turret, all positions driven (speed 30-6000 rpm.,
3,8/2,1 kW)
Y axis
Collection device with gripper
Belt filter system

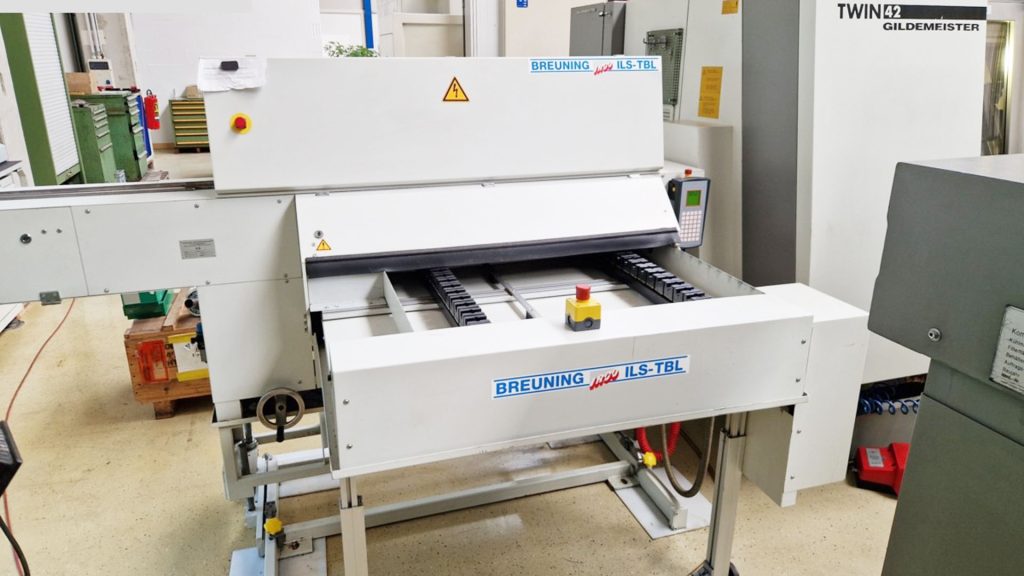

Bar feeder, make Breuning, model ILS TBL

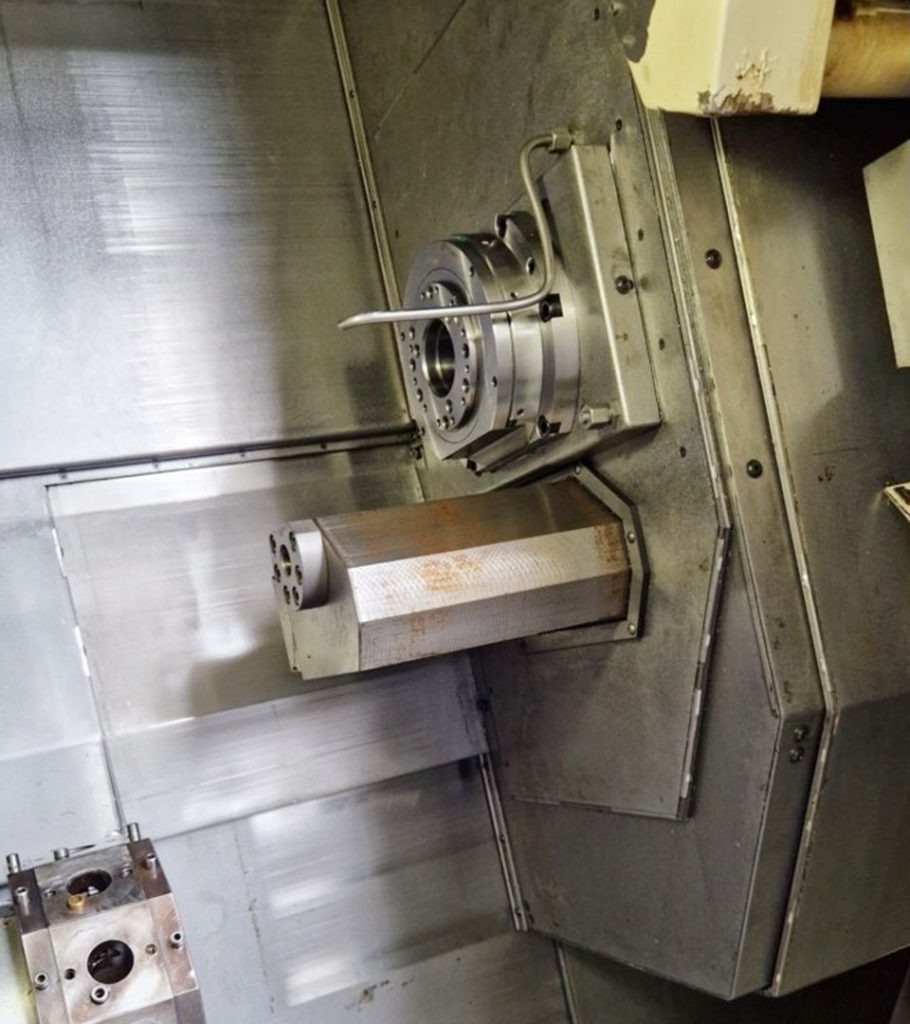

Counter spindle from RUN-TEC, completely overhauled
Additional tailstock under the counter spindle
Chip conveyor
  •
